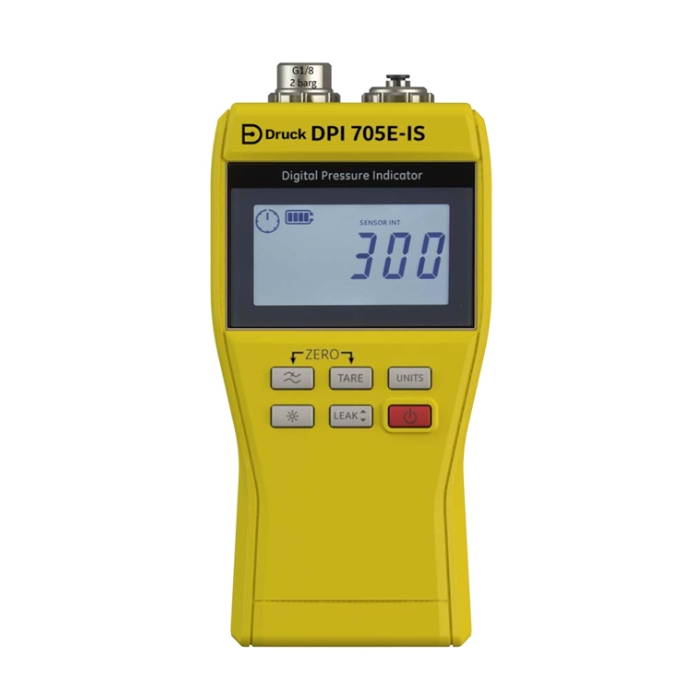

Druck DPI705E-IS Digital Pressure Manometer

The Druck DPI 705E-IS Series of handheld pressure and optional temperature indicators combine tough and rugged design with accurate and reliable measurements. Compact and robust, the DPI 705E-IS Series is designed for single handed operation and provides many essential features required for routine maintenance and system troubleshooting.

Features

• 7 pressure ranges available from ±25 mbar to 2 bar
  (±10 inH20 to 20,000 psi/2.5 kPa to 0.2 MPa)
• Total 1 year uncertainty down to 0.025% full scale (FS)
  over temperature range of -10°C to +50°C
• Integral calibration record with calibration due
  count-down display
• Rugged, handheld design with backlit
  high-contrast display
• Intrinsically Safe
• Compatible with our pneumatic and hydraulic
  hand pumps

DPI705E-IS Improves test efficiency

• Power on and use. No warm up time required.
• 20 pressure measurement units (See below)
• 1, 3 or 5 minute leak test
• Impact resistant, sealed to IP54
• Large digit high-contrast LCD with backlight
• Includes carry case with belt loop
• Optional magnetic/loop hanging strap
• Long battery life
• Integral desk stand and hanger

Special features

Pressure units

mbar, bar, Pa, kPa, hPa, MPa, psi , lb/ft2, kgf/cm2, kgf/m2,
mmHg(0°C), mHg(0°C), inHg 0, mmH2O, cmH2O, mH2O,
inH2O (4°C, 20°C), ftH2O (4°C, 20°C)

Calibration certificates

Supplied as standard in bar, psi and kPa

Leak test

Used to determine if there is a leak in the system by recording
the pressure change over a fixed time.
Leak test can also be used with the RTD sensor to record a
temperature change over time.
User defined 1, 3 or 5 minute leak test with live countdown timer.

Maximum/minimum

Captures both maximum and minimum readings in
peak-hold mode.

Zero

Zero pressure correction (gauge/differential sensors)

Tare

0 to 100% FS temporary zero offset capability by subtracting the
current reading from subsequent measurements.

Filter

Enables a filtered pressure reading by showing a rolling average
of the last 10 measurements. Providing a more stable reading in
a noisy measurement.

Alarm

User adjustable high and low pressure alarms with visual (Bell
Icon, Pressure Reading and Backlight flash) and audible warning
for 60 seconds.

Battery

• 4 x AA Alkaline/NiCd/NiMH cells
• Ultra power efficient design, can be used for 8 Hours
  per day, 6 days per week for up to a year using a single
  set of batteries.

Display

16mm digital height LCD with ±99999 readout

Hazardous area approvals

Australian IECEx approval for use in underground
mining

Calibration

NATA Accredited calibration available through our technical service team
