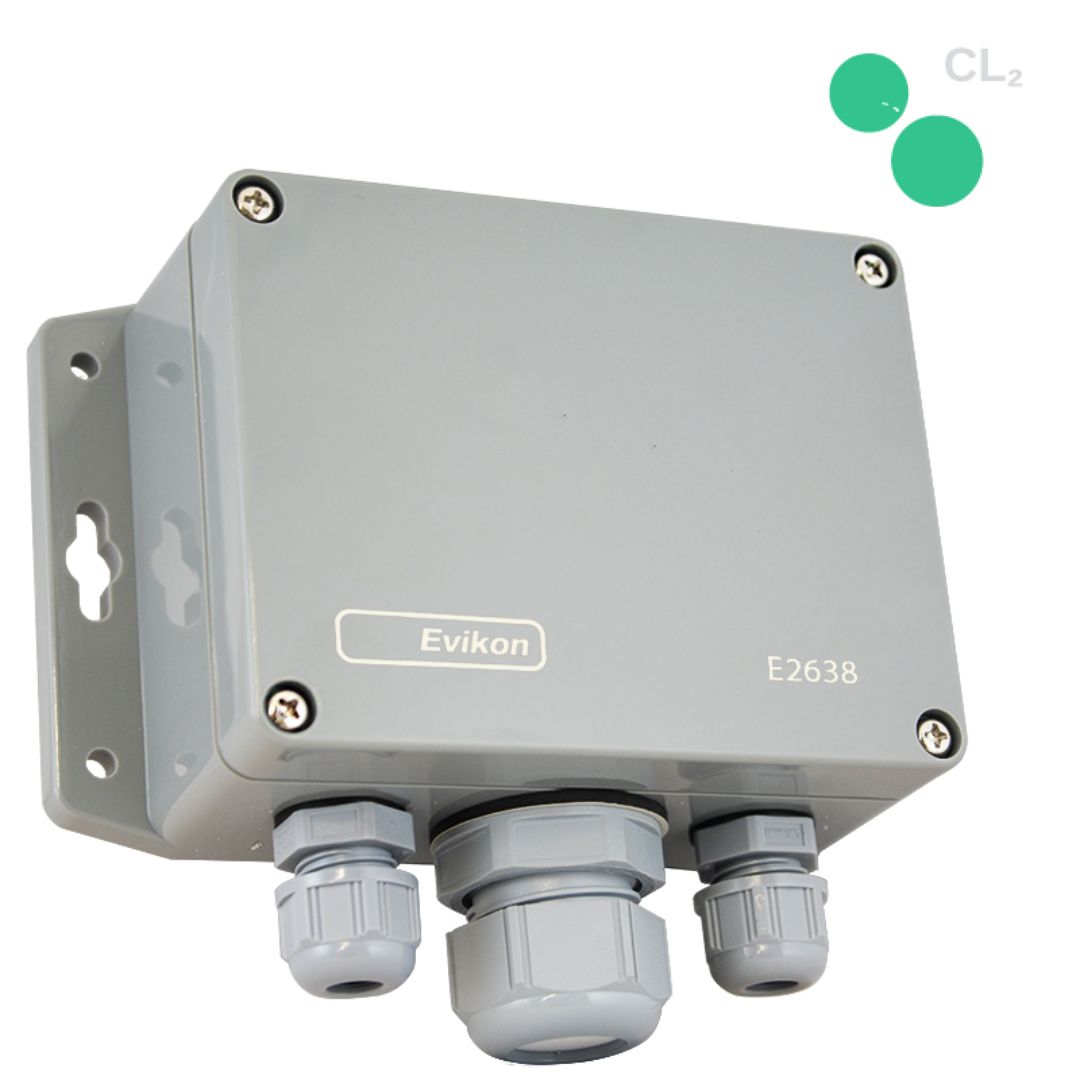

E2638 Chlorine CL2 Transmitter
The E2638-Cl₂ is a cutting-edge chlorine detector-transmitter with a stable electrochemical sensor. Ideal for swimming pools, wastewater treatment plants, and other environments where chlorine gas may pose risks, it features user-defined alarms, RS485 connectivity, and an IP65 enclosure for reliable performance.
Returns: 30-day returns. Buyer pays for return postage. Please read our terms and conditions
Downloads
Description
Features
- Stable long-life electochemical sensor
- Range 0…10 ppm Cl2
- Resoluton 0,1 ppm Cl2
- Two SPST relays option
- 2 × 4-20 mA or 0-10 V, RS485
Description
Chlorine detector-transmitter E2638-Cl2 is a member of new PluraSens® family of multifunctional measurement instruments.
Applications include swimming pools and spas, wastewater treatment plants and other areas, where potentially toxic concentration of chlorine can accumulate.
The instrument utilises a fully calibrated and temperature compensated electrochemical gas sensor with excellent repeatability, stability and long lifetime.
Two relays with closing contact (optional) may be used for remote signalling or concentration control. Two alarm set-points are user settable.
Two analog outputs and RS485 digital interface with industry standard Modbus RTU protocol can be used to connect the detector to safety or building automation systems.
Technical Data
| Calibration | chlorine Cl2 |
| Sensor type | electrochemical |
| Sampling method | diffusion |
| Detection range | 0…10 ppm Cl2 |
| Resolution | 0,1 ppm Cl2 |
| Sensor lifetime | 2 years |
| Power supply | 12…36 VDC (default), |
| 24 VAC or 230 VAC as options | |
| Digital interface | RS485, Modbus RTU protocol |
| Analog outputs | 2 × 4-20 mA / 0-10 V, user settable |
| Output relays (option) | 2 × SPST relays (closing contact), |
| 250 VAC / 30 VDC, 5 A max | |
| Default alarm set-points | 0,5 ppm / 1 ppm Cl2 |
| Enclosure | grey ABS plastic, wall mount, IP65 |
| Dimensions | H90 × W145 × D55 mm |
| Operating conditions | -20…+50 °C, 15…90 %RH |
