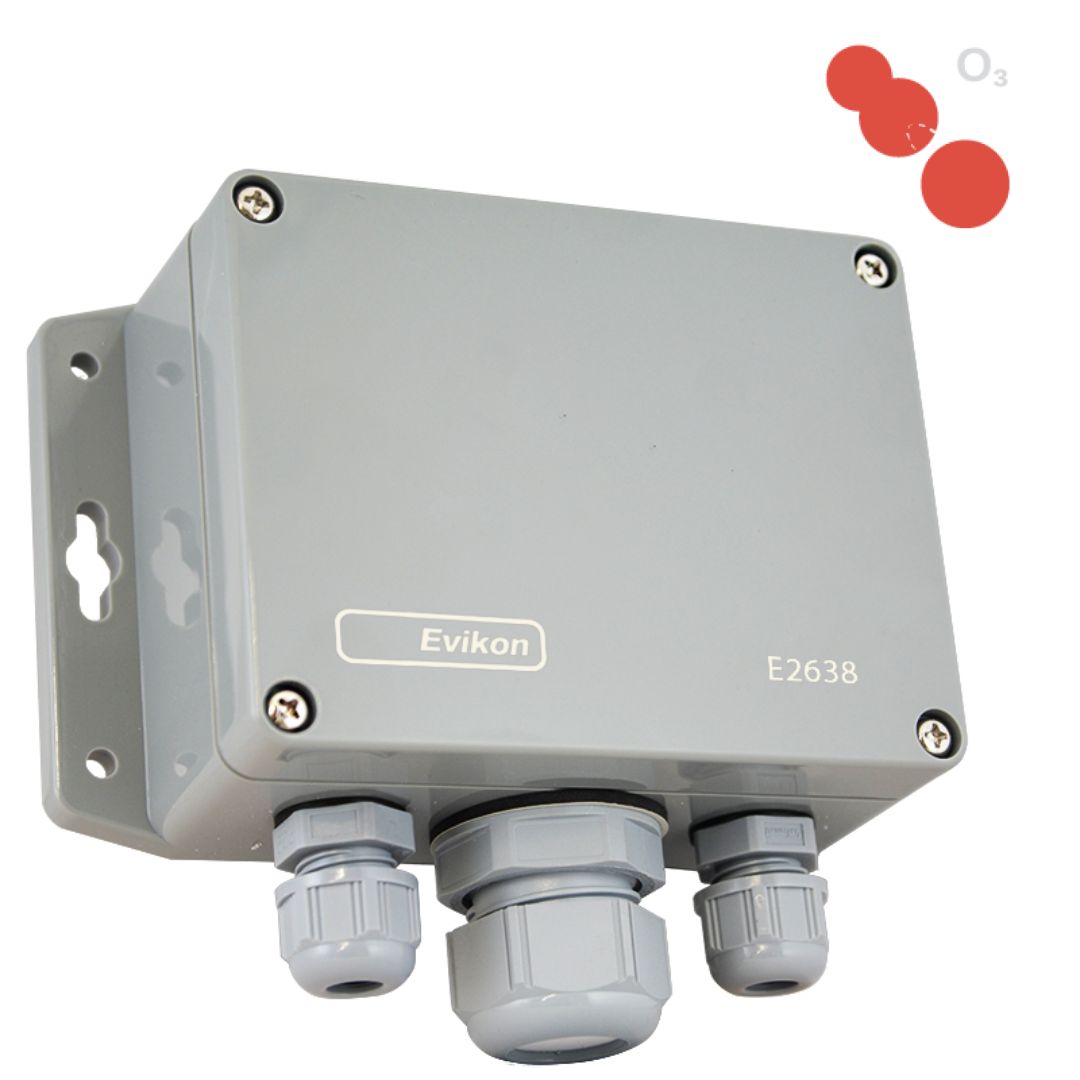

E2638 Ozone O3 Transmitter
The E2638-O₃ is an advanced ozone detector-transmitter featuring a stable electrochemical sensor for monitoring ozone levels in swimming pools, food factories, and disinfection areas. With user-settable alarms and Modbus RTU connectivity, it ensures safety in environments prone to ozone accumulation.
Returns: 30-day returns. Buyer pays for return postage. Please read our terms and conditions
Downloads
Description
Features
- Stable long-life electrochemical sensor
- Range 0…5 ppm O3
- Resolution 0,01 ppm O3
- Two SPST relays option
- 2 × 4-20 mA or 0-10 V, RS485
Description
Ozone detector-transmitter E2638-O3 is a member of new PluraSens® family of multifunctional measurement instruments.
Applications include swimming pools and spas, food factories, places where disinfection or bleaching is performed, and other areas, where potentially toxic concentration of ozone can accumulate.
The instrument utilises a fully calibrated and temperature compensated electrochemical gas sensor with excellent repeatability, stability and long lifetime.
Two relays with closing contact (optional) may be used for remote signalling or concentration control. Two alarm set-points are user settable.
Two analog outputs and RS485 digital interface with industry standard Modbus RTU protocol can be used to connect the detector to safety or building automation systems.
Technical Data
| Calibration | ozone O3 |
| Sensor type | electrochemical |
| Sampling method | diffusion |
| Detection range | 0…5 ppm O3 |
| Resolution | 0,01 ppm O3 |
| Repeatability | < 2 % of signal |
| Sensor lifetime | 2 years |
| Power supply | 12…36 VDC (default), |
| 24 VAC or 230 VAC as options | |
| Digital interface | RS485, Modbus RTU protocol |
| Analog outputs | 2 × 4-20 mA / 0-10 V, user settable |
| Output relays (option) | 2 × SPST relays (closing contact), |
| 250 VAC / 30 VDC, 5 A max | |
| Default alarm set-points | 0,3 / 1 ppm O3 |
| Enclosure | grey ABS plastic, wall mount, IP65 |
| Dimensions | H90 × W145 × D55 mm |
| Operating conditions | 0…+50 °C, 15…90 %RH |
