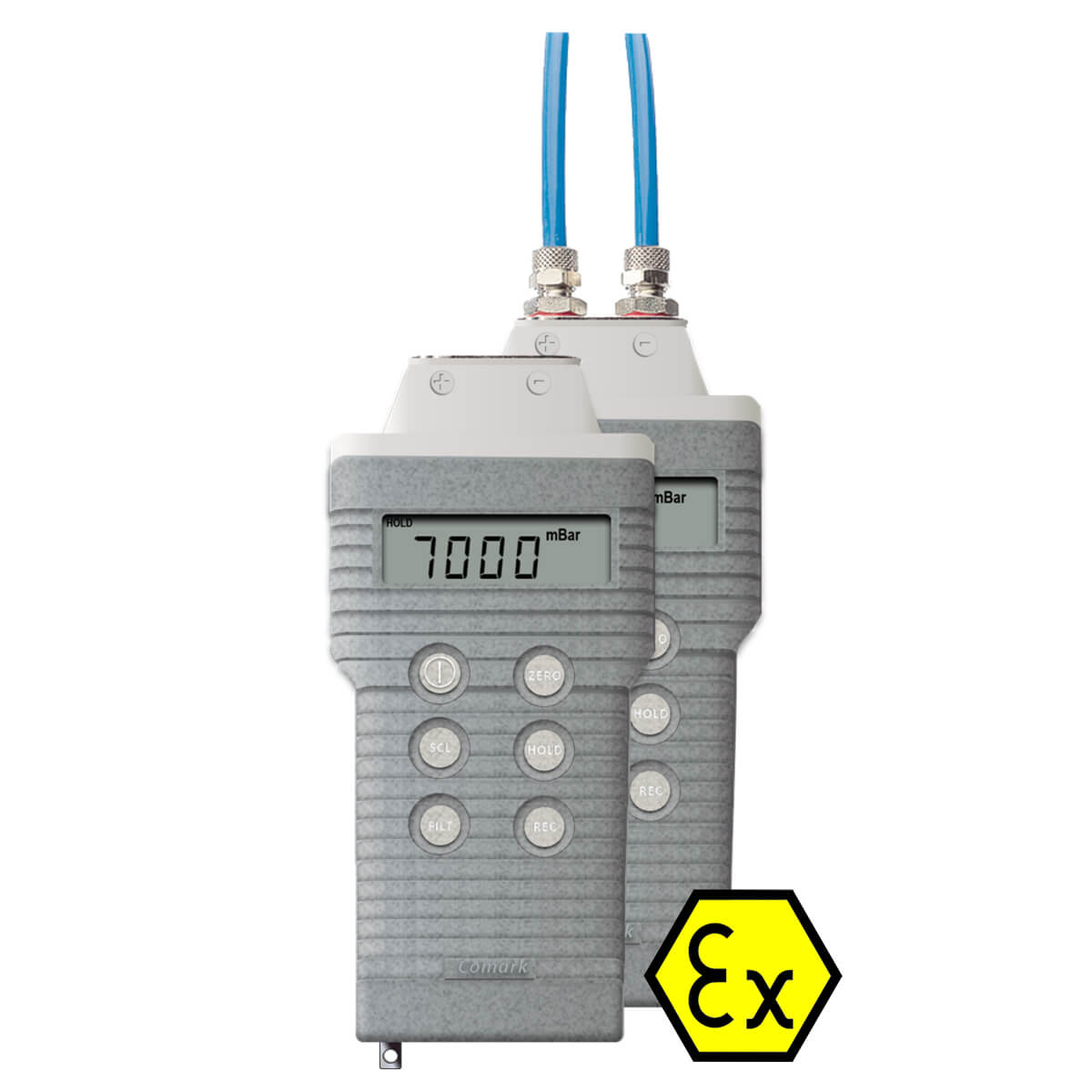

Intrinsically Safe Pressure Meter 0-to-±7000mbar C9507/IS
The Comark C9507/IS Intrinsically Safe Pressure Meter 0-to-±7000mbar / Intrinsically Safe Manometer 0-to-±7000mbar combines high accuracy with speed of response and is ATEX compliant and designed for use in areas where explosive or flammable substances are stored or processed.
- Pressure Measurement Range: 0-to-±7000 mBar
- Twin Inputs for Gauge or Differential Pressure
- Pressure units: PSI, mbar, inH2O, inHg, mmHg, torr, kPa, cmH2O, Kgcm-2
- Warranty: 2 Years
Returns: 30-day returns. Buyer pays for return postage. Please read our terms and conditions
Downloads
Description
Intrinsically Safe Pressure Meter 0-to-±7000mbar
The Comark C9507/IS Intrinsically Safe Pressure Meter 0-to-±7000mbar / Intrinsically Safe Manometer 0-to-±7000mbar combines high accuracy with speed of response and is designed to function between 0 to ±7000mbar. The C9507/IS Intrinsically Safe Manometer has twin inputs for gauge or differential pressure measurement. With a durable design to survive an industrial setting, the Intrinsically Safe Pressure Meter 0-to-±7000mbar is dust and waterproof to IP67 Standard (BS EN 60529), and an optional protective rubber boot is also available.
Our Intrinsically Safe Pressure Meters contain impregnated protection, designed to limit electrical discharge as well as the surface temperature of the device, in order to prevent the possible ignition of a volatile gases, dust or vapours.
The Comark range of Intrinsically Safe Manometers are ATEX compliant, certified to Ex II 1G Ex ia IIC T4 Ga and Baseefa03ATEX0079 and are therefore recommended for use in areas where explosive or flammable substances are stored or processed. These pressure meters have been approved by internationally recognised approval bodies to intrinsic safety requirements.
Technical Specifications
| Name | Value |
|---|---|
| Pressure Measurement Range | 0 to ±7000 mBar |
| Resolution | 1mBar |
| Accuracy | ±0.2% of full scale (FS) at +23°C |
| Repeatability | ±0.1% of full scale (FS) at +23°C |
| Mean Temperature Coefficient of Reading | <0.1% per °C |
| Operating Temperature Range | 0 to 50°C |
| Humidity Range | 10 to 90% RH non-condensing |
| EMC | Tested to EN61326-1 Criteria B performance |
| Environmental Protection | IP67, BS:EN60529, IEC529 |
| Battery | 9V PP3 *6F22 — 6F22REL or GP1604G |
| 125 hours | |
| *IS models must only use Zinc Chloride Battery | |
| Low Battery Warning | Displays BAT just before end point of battery |
| Over Pressure Indication | – – – – |
| Over 9999 Reading Indication | Lowest 4 digits blink |
| Connections | 1/8″ BSP female |
| Weight | 330gm including battery |
| Dimensions | 175 x 82 x 32mm |
| Warranty | 2 Years |
